Multicast Introduction

Where you can find it

The Node Multicast field is placed under the Multicast's menu which is between the Nodes and the LoRaWan Gateways one.

Find

Definition

The Multicast represent a way to send the same Downlink Message(Payload) to many different Nodes.

Usage

Find

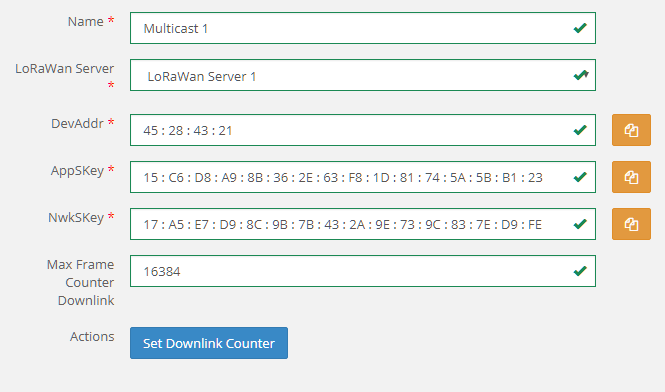

The Multicast is defined by:

  • **A Name**: the Name of the Multicast
  • **LoRaWan Server**: the LoRaWan Server which the Multicast is linked to
  • **DevAddress**: a unique Hexadecimal 4 Bytes key
  • **AppSecureKey**: a Hexadecimal 16 Bytes key
  • **NwkSecureKey**: a Hexadecimal 16 Bytes key
  • **Max FrameCounterDownlink**: the max number that the Frame Counter Downlink may reach before restart
