Diagnostic

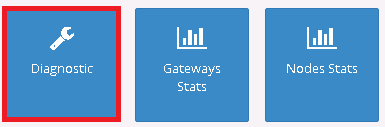

Where you can find it:

The Diagnostic item can be found on the left-side menu: it is placed just between the Communication Log and Log.

GitHub Logo
GitHub Logo

Usage:

The Diagnostic is used to monitorate 3 different types of data: Connectors, Nodes and Variables. It is composed by three tables, one for every different data type. Each table displays the information of each single element.

Each element of each table has a Last message status wich could be:






Connectors Table:

  • The Message status
  • The Connector's name
  • The Connector's type
  • The Date of the last message
  • The quatity of the messages during last hour
  • The quatity of the messages during last 6 hours
  • The quatity of the messages during last 12 hours
  • The quatity of the messages during last day
  • The quatity of the messages during last week


Nodes Table:

  • The Message status
  • The Node's name
  • The Node's DevEUI
  • The Node's AppEUI
  • The Node's Type
  • The Date of the last message
  • The quatity of the messages during last hour
  • The quatity of the messages during last 6 hours
  • The quatity of the messages during last 12 hours
  • The quatity of the messages during last day
  • The quatity of the messages during last week


Variables Table:

  • The Message status
  • The Variable's name
  • The Variable's type
  • The Variable's last set
  • The Variable's current value
  • The Date of the last message
  • The quatity of the messages during last hour
  • The quatity of the messages during last 6 hours
  • The quatity of the messages during last 12 hours
  • The quatity of the messages during last day
  • The quatity of the messages during last week
